EGLON HOUSE

PHOTOVOLTAIC SKYLIGHT



In the exclusive neighborhood of Primrose Hill in North London, In the exclusive neighborhood of Primrose Hill in North London, designer Russell Sage created Eglon House, a magnificent modernist house that reinvents an architectural classic for the 21st century that has been put up for sale in northwest London for £ 21 million.



bart estacion onyx solar viabilidad

FEASIBILITY STUDY OF AMORPHOUS  SILICON PHOTOVOLTAIC SKYLIGHT IN LONDON

<0,05€
Energy cost

14%
Reduction in HVAC energy demands

15%
Internal Rate of Return

<6 year
Payback







Data:

  • superficieTotal Area - 45 M2
  • electricidad generadaElectricity generated in 35 years  - 53.077 kWh
  • puntos de luzTotal lighting points operating 4 hours per day in 35 years - 104 lighting points
  • emisiones CO2 evitadasAvoided CO2 emmisions in 35 years - 36 CO2
  • barriles petroleo ahorradosBarrels of oil saved in 35 years - 31 barrels

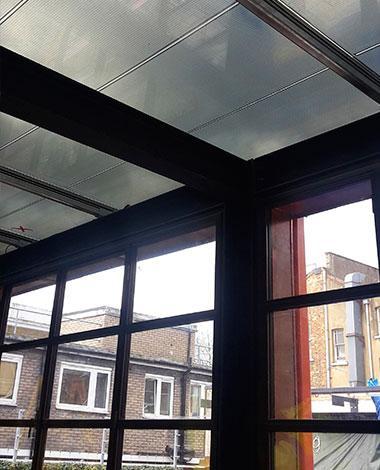

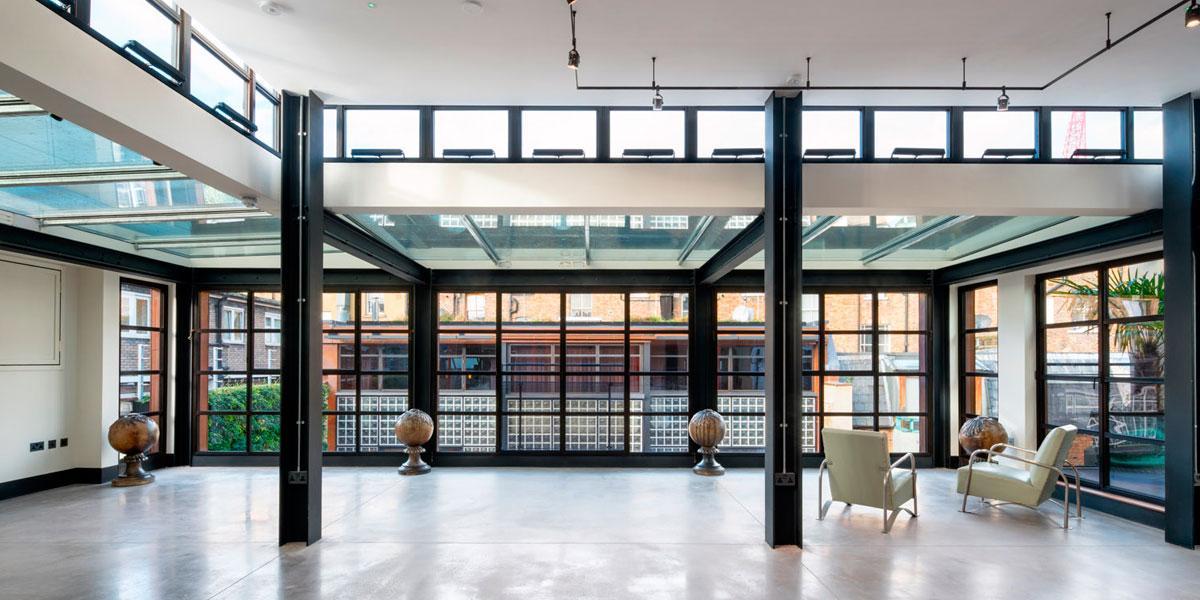

Eglon House incorporates a photovoltaic skylight in the upperEglon House incorporates a photovoltaic skylight in the upper floor; Photovoltaic solar glasses are fixed in the triple glass ceiling lights so that it simultaneously reduces brightness and generates energy.



The project consists of 13 units of amorphous silicon PV glass with the project consists of 13 units of amorphous silicon PV glass with an argon chamber based on a low degree of transparency. In addition to providing on-site power, they also provide natural light, ultraviolet and infrared radiation filters, and permanent protection against London weather conditions.





EGLON portada int 3





The dimension of this triple laminated glass for this skylight is1100x3000mm and you have a power per unit of 154 Wp.



The skylight glass goes to aluminum frames that are supported by exposed steelwork.





EGLON portada int 2
